Fire Shutters

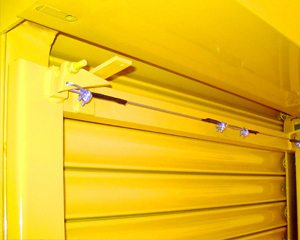

Push Up Fire Shutters – *4 Hour Fire Rated

A 4 hour fire rated push up / pull down industrial fire shutters suitable for openings where the door is required to stay in an open static position until the onset of fire in close proximity. Door is held open on a fusible link which separates at 72 degrees causing the door to fall under gravity creating an impregnable fire seal of 240 minutes.

Fire Shutters - Manual, Chain and Powered Fire Protection Shutters

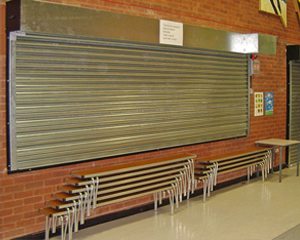

Power Operated Fire Shutter – *4 Hour Fire Rated

A 4 hour fire rated power operated industrial fire shutter suitable for larger openings which need to be used on a daily basis. Can be operated by solenoid (connected to fire alarm) or fusible link. Driven by a three phase or single phase motor. Can also have the addition of a Fire Door Interface Panel which can give timed delay or re-open feature. Photo-cells can be added to panel as an additional safety feature. Once the door is in the closed position, it creates an impregnable fire seal of 240 minutes.

Solenoid – Needs to receive a 24V DC signal (non-polarised) from the fire alarm to trigger the solenoid. Door will fall under gravity by releasing the brake on the motor.

FDI panel – Can receive either a 24V DC signal (non-polarised) or normally open/normally closed volt free signal. Capable of time delay feature on pedestrian egress routes as well as automatic re-open facility once the fire alarm has been re-set. Photo-cells can be added to prevent the door closing onto an obstruction which will be overridden in fire activation mode once three complete attempted closings have been made. Door will be driven down via the motor, but in the event of a power failure the FDI panel will trigger the solenoid causing the door to fall under gravity.

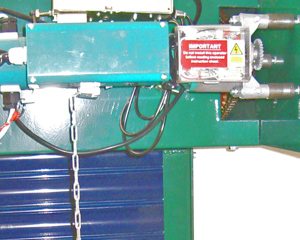

Chain Operated Fire Shutter – *4 Hour Fire Rated

A 4 hour fire rated chain operated industrial shutter suitable for opening where a power supply is unavailable and where doors are tested on the fire alarm on a regular basis. Can be operated by solenoid (connected to fire alarm) or fusible link. Driven by a gear box with haul chain facility. Once the door is in the closed position, it creates an impregnable fire seal of 240 minutes.

Solenoid – Needs to receive a 24V DC signal (non-polarised) from the fire alarm to trigger the solenoid. Door will fall under gravity by releasing the brake on the motor.

Chain Operated Fire Shutter – *4 Hour Fire Rated

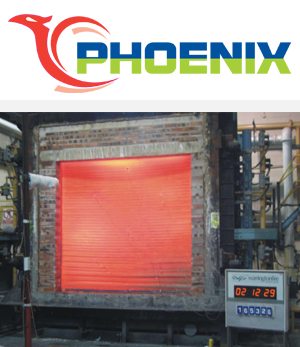

Phoenix 2 Hour Fire Rated Tubular Motor Fire Shutter

Phoenix 2 Hour Fire Rated Tubular Motor Fire Shutter

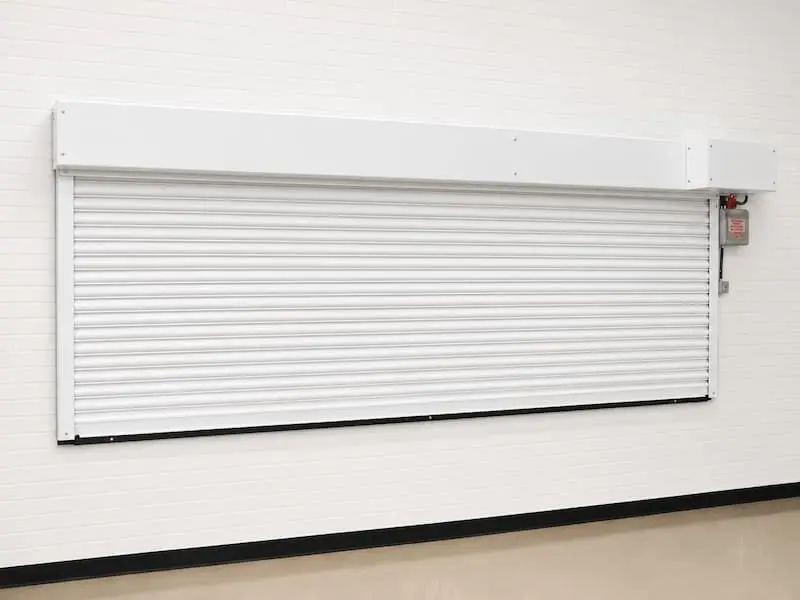

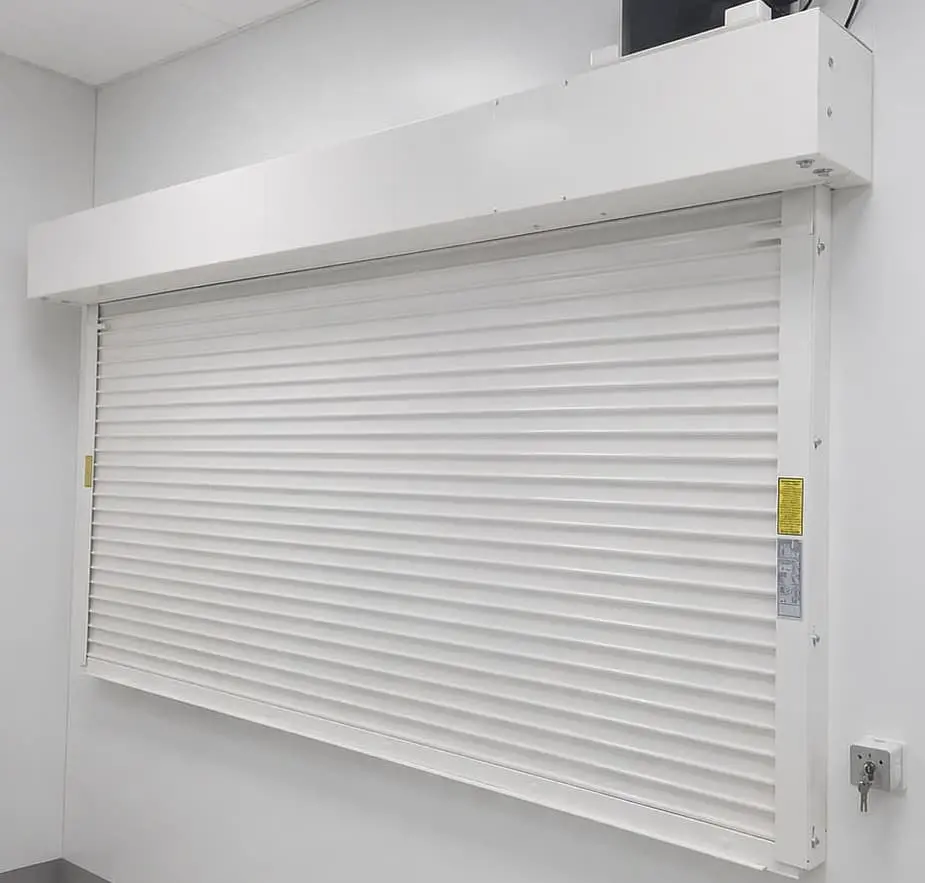

A 2 hour fire rated tubular motor shutter more suited to smaller openings such as kitchen serveries and reception counters.

Compact design gives excellent aesthetic finish using the 50mm flat lath. All doors come with a manual override. Door is operated by key switch or push button linked to AEO-900 relay to allow for link to fire alarm. Battery back-up is available as an option if a maintained supply is not available. Normally open volt free contact is required from the fire alarm. Once triggered the door is driven closed under power. Can also have the addition of a Fire Door Interface Panel which can give timed delay or re-open feature. Photo-cells can be added to panel as an additional safety feature. Once the door is in the closed position, it creates an impregnable fire seal of 120 minutes.

Please Note – Door must have a maintained supply. If this is not available then a battery back-up unit is required.

The Ram-Fold 6 Hour Fire Rated Sliding Folding Fire Shutter

Profile Door Engineering – experts in sliding, folding doors.

Heavy-duty door ideal for goods lifts, the Ram-Fold Lift Shutter Door is designed to maximise the opening width, running smoothly along discreet top and bottom tracks with the shutter folding neatly to one side. Rolled from a single sheet of steel, the one-piece picket ensures the lattice and leaf have an even operation within the door whilst retaining strength. The door consists of 152mm (6”) galvanised plain sections, hinged vertically by a continuous hinged strip.

The Ram-Fold 6 Hour Fire Rated Sliding Folding Fire Shutter
