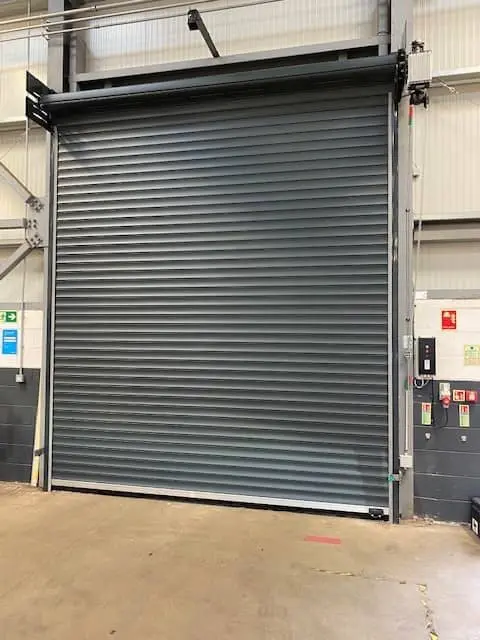

S35 - The Arctic Hare Insulated High Speed Roller Shutter

Our Series 35 Arctic Hare Insulated High Speed roller shutters are a robust product ideally suited to protect commercial and industrial premises with openings up to 5000mm wide x 5000mm high, in addition to providing ease of operation with such large openings with high traffic flow, the doors are designed to reduce your carbon footprint by reducing heat loss as well as providing a sound barrier.

Each door is made to measure, CE marked, and fitted with a direct drive motor with integral safety brake, ensuring each product complies with European directives and gives you peace of mind.

Each design has been thoroughly tested and inspected by Exova enabling us to issue Declaration Of Performance.

All our High Speed Insulated Roller Shutters are manufactured in house at our facility in Leigh and are subject to continuous product development, ensuring the products we offer are of the highest quality whilst maintaining ease of installation.

Each High Speed Insulated Roller Shutter can be designed manufactured to suit your specific requirements using the latest technology from the three leading Industrial Door Motor suppliers, GFA, Link Controls and Ellard, our dedicated team can give advice and technical support, we can back up an already high quality product with first class service and support.



Options

  • Ground Lock
  • Interlocks to prevent operation when security devices are engaged
  • Side seals
  • Bottom Weather Seal
  • Soffit Seal (4” Brush Strip)
  • Weather Canopy
  • Vision Panels (Punched and Glazed)
  • Plastisol Finish Curtain
  • Wind Guides
  • Class 5 Wind Loading (When used with wind endlock)
  • Fully automated use when Safety Edges and Photo-Cells are fitted
  • Induction Loop
  • Radar
  • Remote controls
  • Key switches
  • Powder coated to any standard RAL or BS number
  • Special colours available at customer request

DOWNLOAD THE BROCHURE

TECHNICAL SPECIFICATION

SHUTTER TYPE – ELECTRIC / POWER OPERATION
3 PHASE (415V)

OPERATION

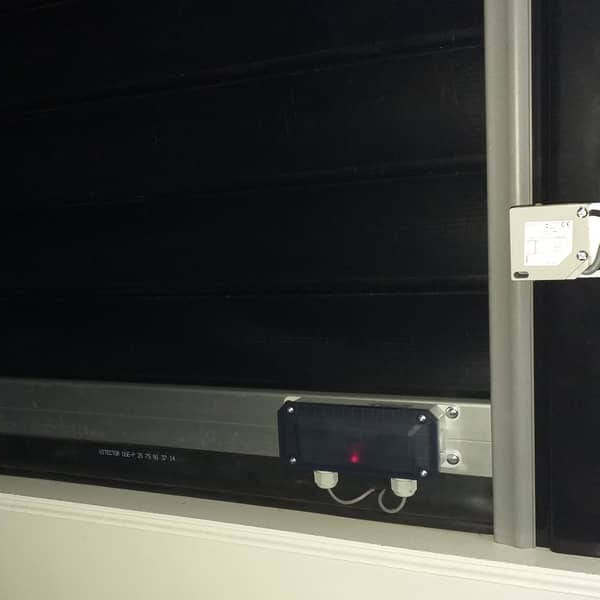

Each door is equipped with a fully automatic control panel to IP54 specifications featuring a self closing delay facility. Infrared photocell and conductive wireless safety edge are standard. Operating speed 650mm per second soft start.

MAXIMUM SIZE
6,000mm WIDE x 6,000mm HIGH

CURTAIN

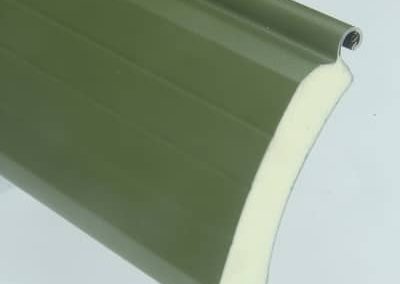

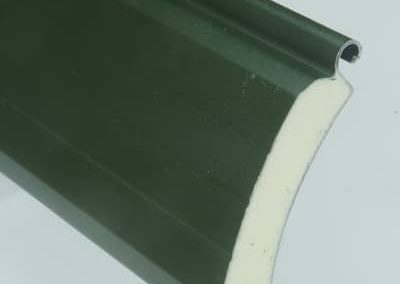

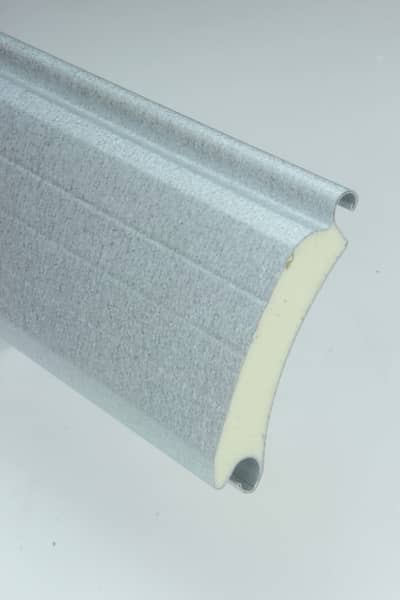

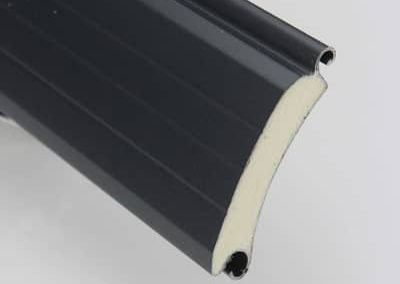

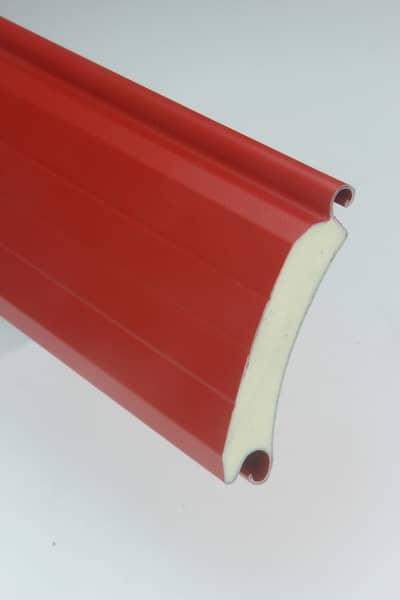

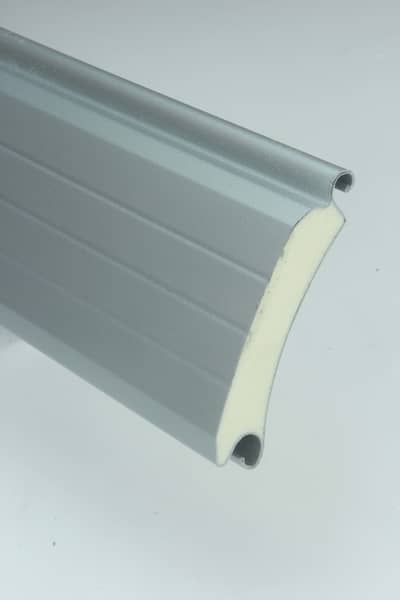

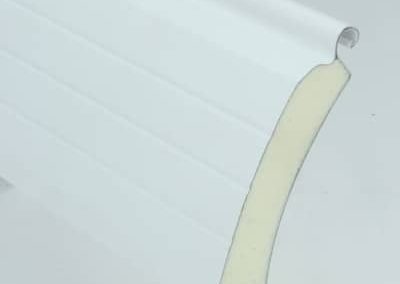

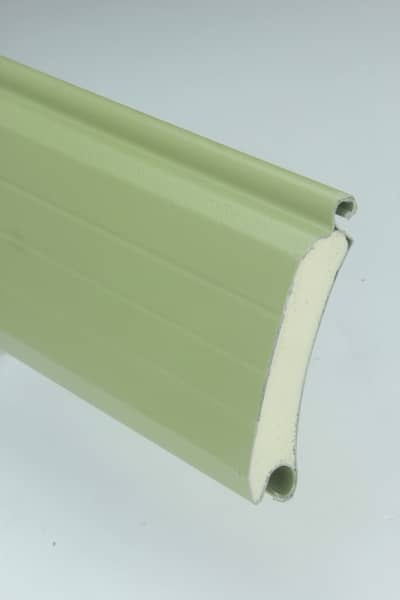

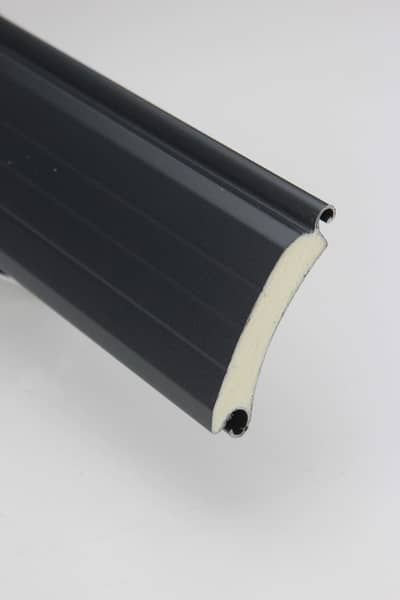

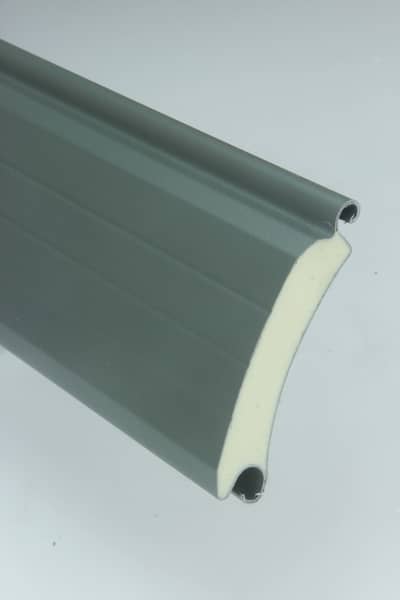

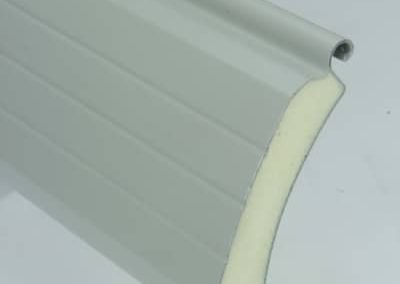

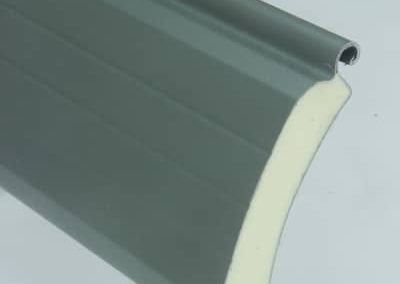

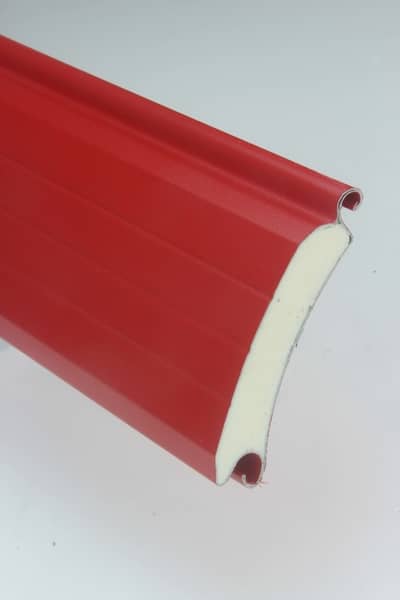

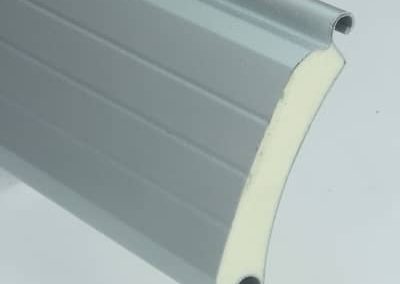

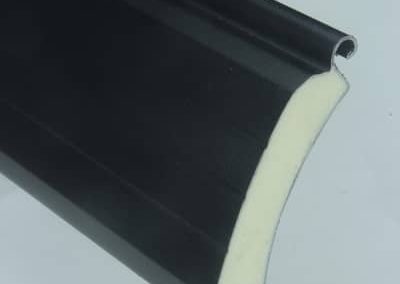

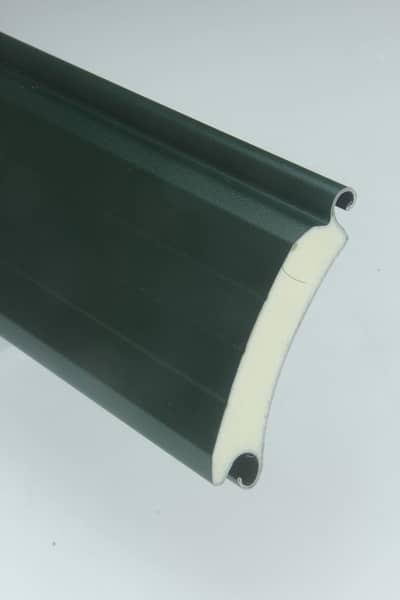

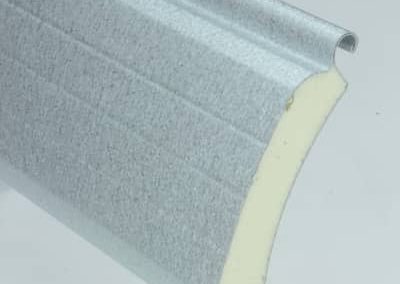

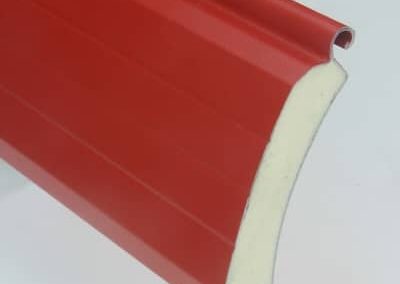

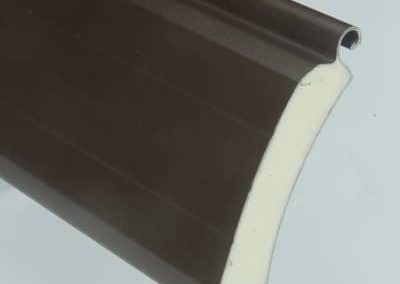

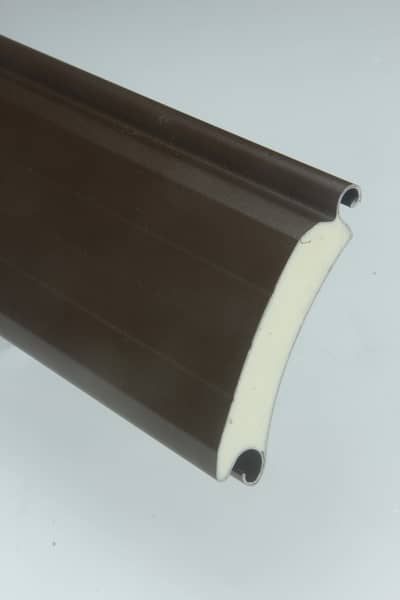

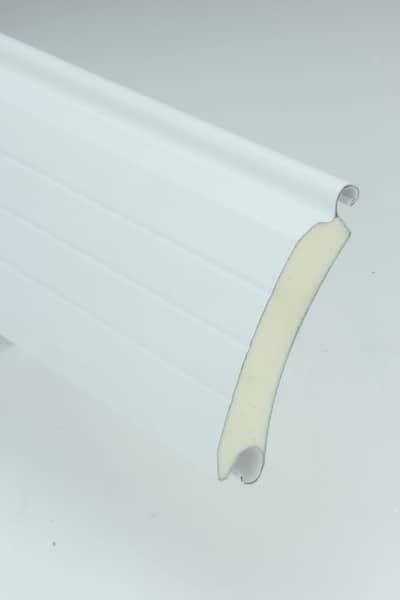

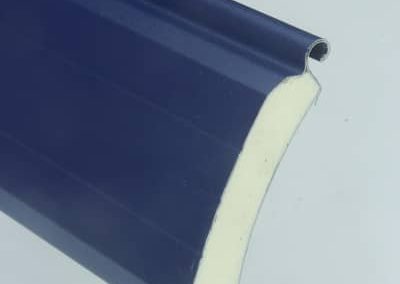

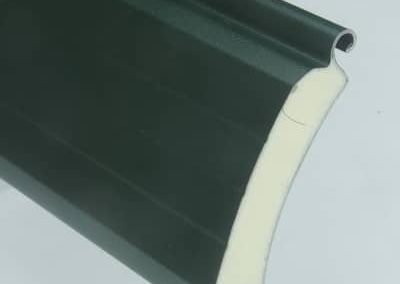

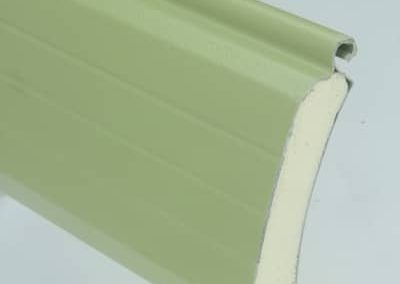

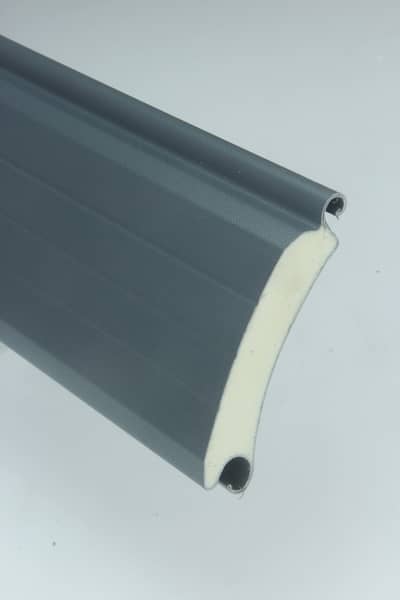

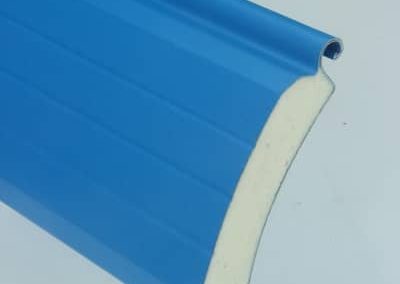

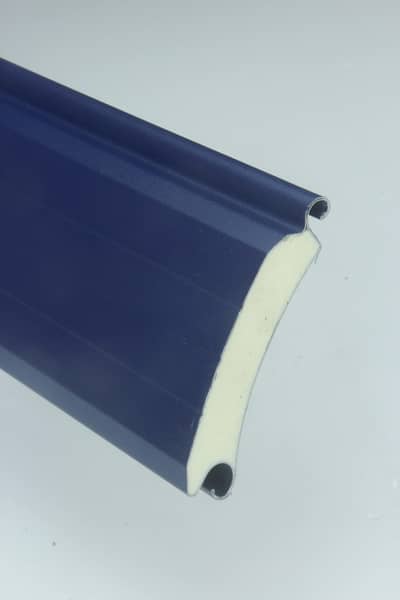

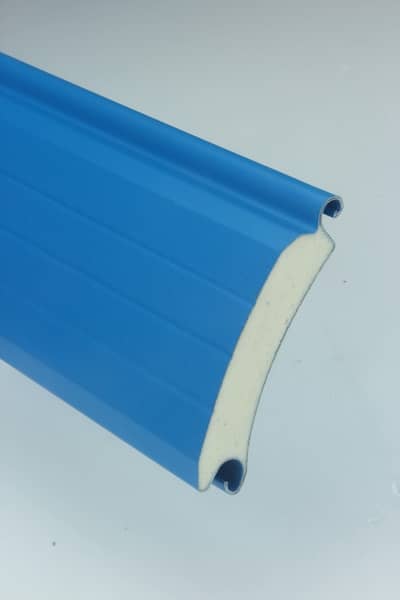

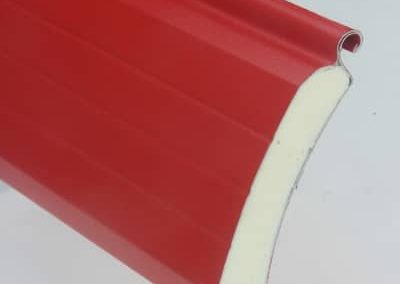

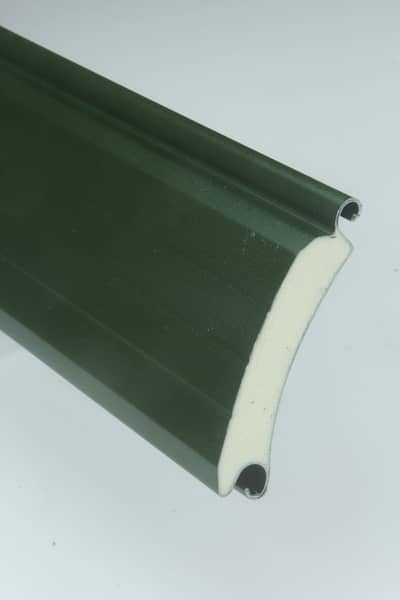

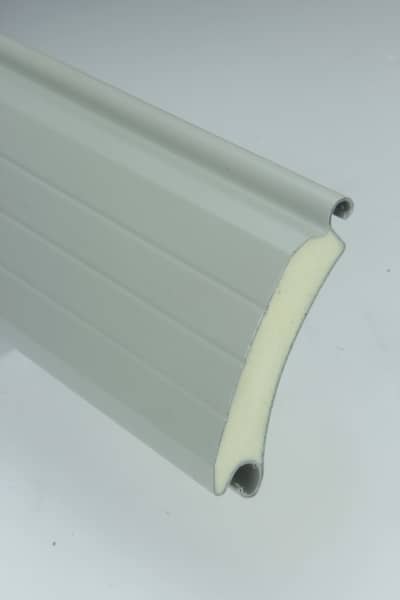

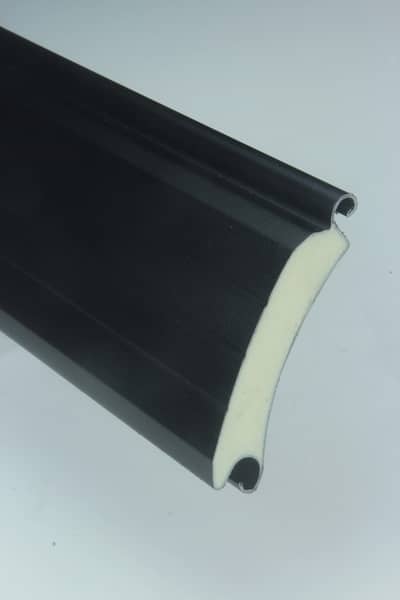

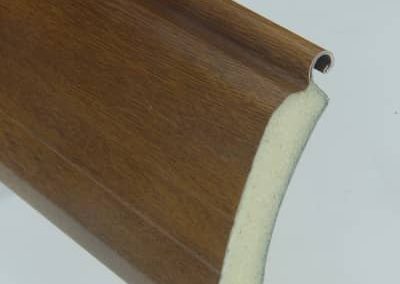

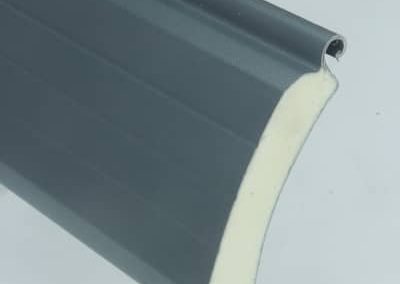

25 mm thick Double Skin – flat aluminium lath, triple ribbed for strength and rigidity. Alternate laths are fitted with high density glass filled nylon endlocks, which are double pop riveted to prevent lateral movement. The curtain is attached to the shutter barrel using high tensile hexagon head set screws. A high strength nylon or steel retainer strip is added to the base of the curtain complete with a rubber bottom weatherseal & safety edge. This helps prevent vermin & water ingress.

BARREL
Manufactured from seamless mild steel tube to BS4760 Grade 50C. Door width and height dictate size of tube used. Maximum barrel deflection 1:400. Barrel to be fitted with precision machined shafts to suit direct drive motor.

FLAGS
Endplates are constructed from 6mm thick mild steel plate (BS 1449), a formed endplate for the both sides fitted with self-aligning bearings. Motor side prepared for the appropriate direct drive motor. Fixing angles are formed using hot rolled angle section, 100mm x 75mm x 8mm, they coated in a black primer painted finish. Attached to the fixing angles are the galvanised (BS 729:1971) shutter guides, the guide section is typically 85mm deep, the guide thickness is 3mm. For added insulation the guides are fitted with double brush seals both sides. 1No. Photocell is added to the Arctic Hare as standard.

MOTOR
Direct Drive High Speed Motor (Soft Start/Stop) 3 Phase (415 volt) complete with starter, open/close/stop facility, encoder limits and emergency overide facility.

SPEED
0.65 Metres per second

“U” VALUE
0.733 W / m K

WEIGHT
Curtain weighs 9.8kg per sq meter

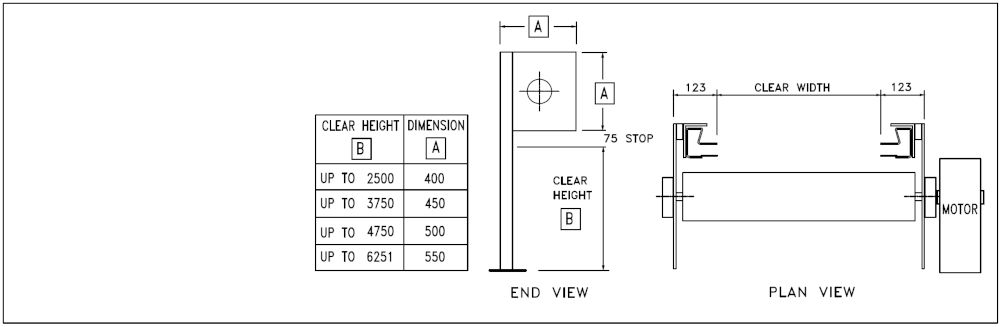

Space Requirements

Face Fix

Maximum Width: 6000
Geared Sideroom: 340mm
Non-Geared Sideroom: 168mm Per Side

Between Fix

Maximum Width: 6000
Geared Sideroom: Lose 368mm
Non-Geared Sideroom: Lose 196mm

Maximum Height: 3750, 4750, 6250
Headroom: 475mm, 525mm, 575mm
