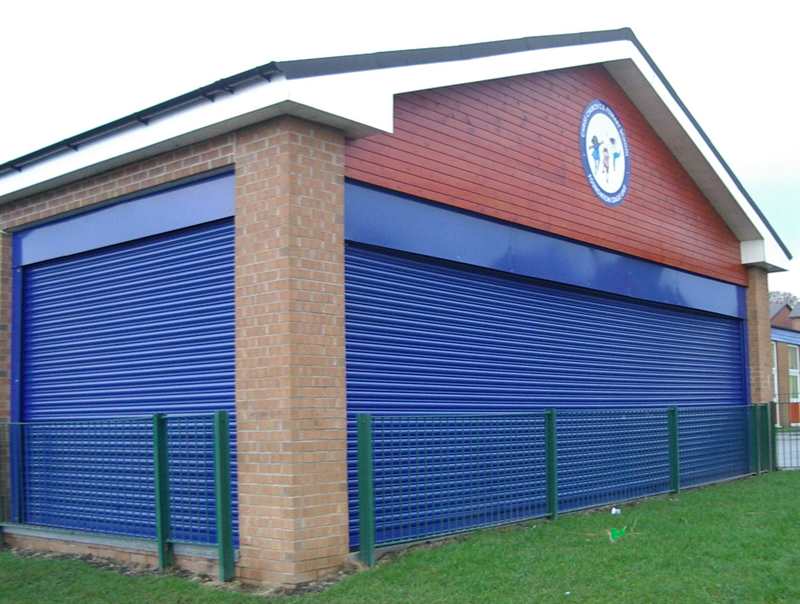

Tubular Motor Roller Shutter Power Operated

Our Series 19 Electrically Operated Tube Motor roller shutters are a compact and robust product ideally suited to protect commercial and industrial premises with openings up to 7500mm wide x 4000mm high, in addition to providing ease of operation with such large openings. Each tubular motor is backed by a 5 year guarantee (subject to regular service intervals).

Each roller shutter is made to measure, CE marked, and fitted with a safety brake, ensuring each product complies with European directives and gives you peace of mind.

Each design has been thoroughly tested and inspected by Exova enabling us to issue Declaration Of Performance.

All our Roller Shutters are manufactured in house at our facility in Leigh and are subject to continuous product development, ensuring the products we offer are of the highest quality whilst maintaining ease of installation.

Each roller shutter can be designed manufactured to suit your specific requirements using the latest technology from the three leading Industrial Door Motor suppliers, GFA, Link Controls and Ellard. Our dedicated team can give advice and technical support, backing up an already high quality product with first class service and support.

Options

  • Ground Lock
  • Bullet Locks
  • Interlocks to prevent operation when security devices are engaged
  • Side seals
  • Bottom Weather Seal
  • Soffit Seal (4” Brush Strip)
  • Wicket Gates for Pedestrian Access
  • Weather Canopy

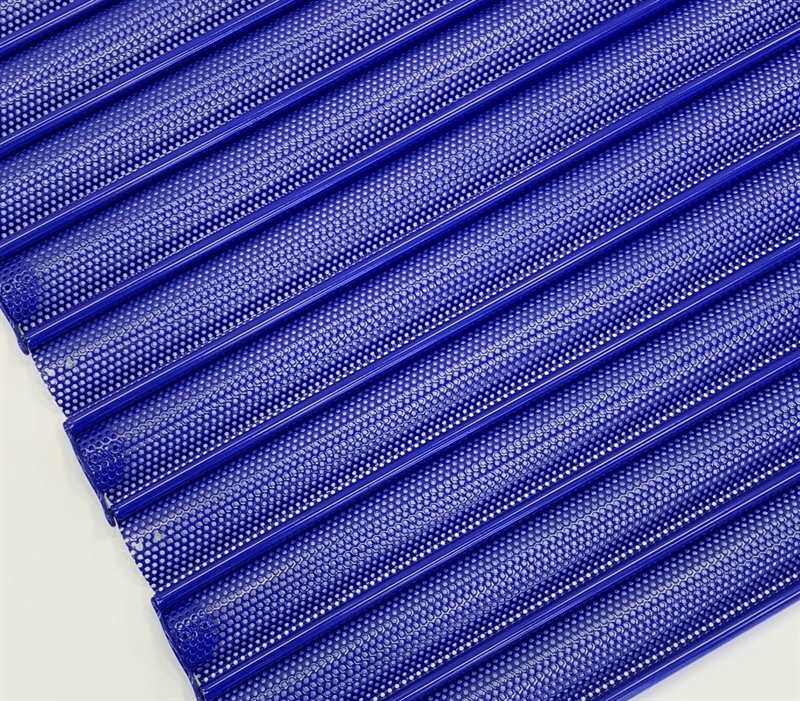

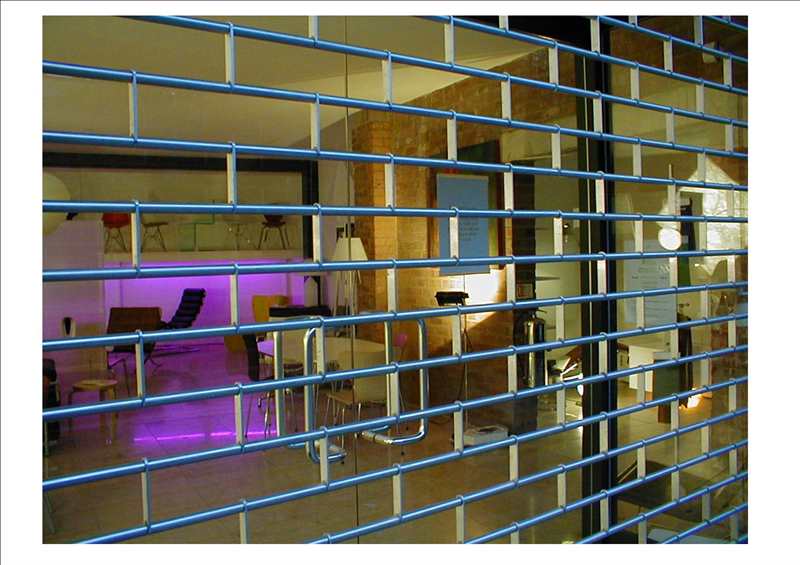

  • Perforated Curtain

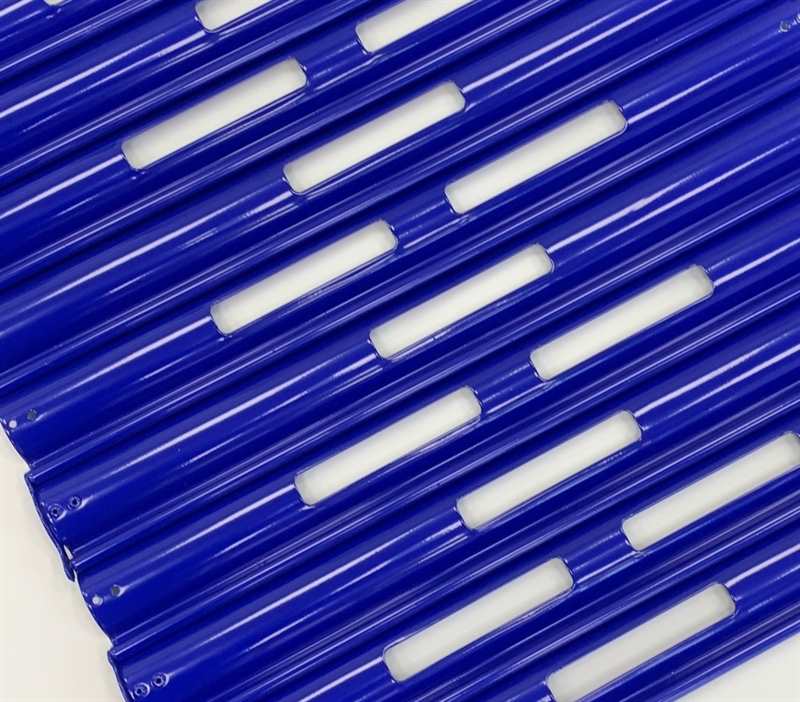

  • Punched Curtain
  • Plastisol Finish Curtain
  • Wind Guides
  • Class 5 Wind Loading (When used with wind end lock)
  • Fully automated use when Safety Edges and Photo-Cells are fitted
  • Induction Loop
  • Radar
  • Remote controls
  • Key switches
  • Powder coated to any standard RAL or BS number
  • Special colours available at customer request
TECHNICAL SPECIFICATION

SHUTTER TYPE – ELECTRIC / POWER OPERATION
SINGLE PHASE (240V)

OPERATION
KEYSWITCH

MAXIMUM SIZE
8,000mm WIDE x 3,000mm HIGH

TYPICAL APPLICATION
SHOPFRONT/SERVERY HATCH

CURTAIN
Cold Rolled 3” curved traditional lath, galvanised to BS729:1971, 22 swg (0.7mm thick). Alternate laths are fitted with high density glass filled nylon endlocks, which are double pop riveted to prevent lateral movement. The main curtain is attached to the shutter barrel using high tensile hexagon head set screws. A high strength galvanised (BS729:1971) inverted “T- Section” bottom rail is added to the base of the curtain, typically 1.6mm thick.

MOTOR BARREL
Integral tubular motor fitted within circular tube. Lost bobbin system fitted to the “dummy end”. Manual override facility on motor end (Via eyelet). Crank handle supplied with each project.

FLAGS
Endplates are constructed from flat 6mm thick mild steel plate (BS 1449). Fixing angles are formed using hot rolled angle section, 75mm x 50mm x 6mm, attached to the fixing angles are the galvanised (BS 729:1971) shutter guides, the guide section is typically 2 1/2” in depth x 1” inside dimension, the guide thickness is 3mm. The flags are coated in a black zinc phosphate primer paint finish.
WEIGHT
35 KGs Per Square Metre

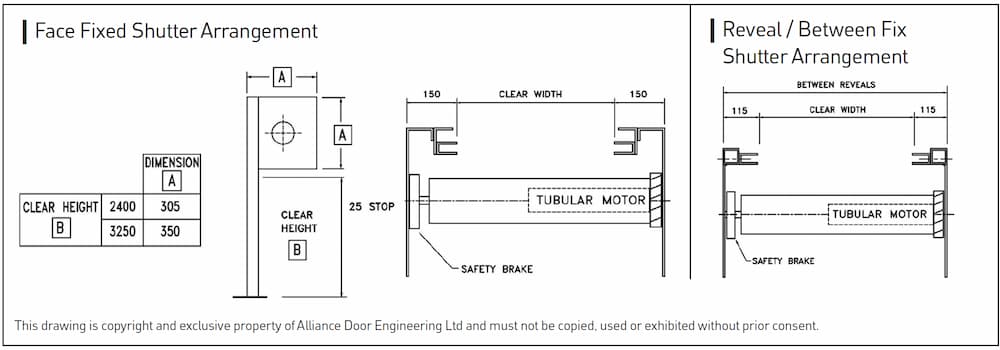

Space Requirements

Face Fix

Maximum Width: 8000
Motor Sideroom: 150mm
Dummy End Sideroom: 76mm Per Side

With safety brake: 150mm, 150mm

Between Fix

Maximum Width: 8000
Motor Sideroom: Lose 178mm
Dummy End Sideroom: Lose 70mm

With safety brake: 178mm, 178mm

Maximum Height: 3000, 4550
Headroom: 375mm, 425mm
