Power Operated

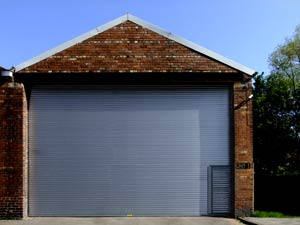

Industrial Roller Shutter

An electrically operated roller shutter driven by a three phase or single phase industrial motor. Suitable for loading bays and car parks. Cost effective and secure.

Lynx Automatic Roller Garage Door

Automatic Garage Door attractive and convenient. Come with remote control as standard and also safety beam. Compact design lends more space to your garage than traditional garage doors.

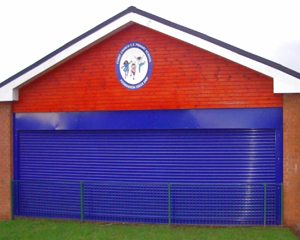

Tubular Motor Roller Shutter

A tubular motor roller shutter ideal for shop fronts and servery hatches. Gives high level of security due to the high grade steel construction.

Insulated Roller Shutter

Suitable for small-large openings where insulation and security is a requirement.

Power Operated Fire Shutter – *4 Hour Fire Rated

A 4 hour fire rated power operated industrial shutter suitable for larger openings which need to be used on a daily basis. Can be operated by solenoid (connected to fire alarm) or fusible link. Driven by a three phase or single phase motor. Can also have the addition of a Fire Door Interface Panel which can give timed delay or re-open feature. Photo-cells can be added to panel as an additional safety feature. Once the door is in the closed position, it creates an impregnable fire seal of 240 minutes.

Solenoid – Needs to receive a 24V DC signal (non-polarised) from the fire alarm to trigger the solenoid. Door will fall under gravity by releasing the brake on the motor.

FDI panel – Can receive either a 24V DC signal (non-polarised) or normally open/normally closed volt free signal. Capable of time delay feature on pedestrian egress routes as well as automatic re-open facility once the fire alarm has been re-set. Photo-cells can be added to prevent the door closing onto an obstruction which will be overridden in fire activation mode once three complete attempted closings have been made. Door will be driven down via the motor, but in the event of a power failure the FDI panel will trigger the solenoid causing the door to fall under gravity.

Phoenix 2 Hour Fire Rated Tubular Motor Shutter

A 2 hour fire rated tubular motor shutter more suited to smaller openings such as kitchen serveries and reception counters.

Compact design gives excellent aesthetic finish using the 50mm flat lath. All doors come with a manual override. Door is operated by key switch or push button linked to AEO-900 relay to allow for link to fire alarm. Battery back-up is available as an option if a maintained supply is not available. Normally open volt free contact is required from the fire alarm. Once triggered the door is driven closed under power. Can also have the addition of a Fire Door Interface Panel which can give timed delay or re-open feature. Photo-cells can be added to panel as an additional safety feature. Once the door is in the closed position, it creates an impregnable fire seal of 120 minutes.

Please Note – Door must have a maintained supply. If this is not available then a battery back-up unit is required.

Arctic Hare High Speed Insulated Roller Shutter

Reduce your carbon footprint with a high-speed insulated shutter. Suitable for openings that require insulation, noise reduction and speed. This door combines the three features together effectively and is very cost effective. It not only reduces your carbon footprint, but also negates the need for a separate security shutter and high speed door. Safety devices fitted as standard are photo-cell and wireless safety edge. Door can be operated by remote, induction loop, radar and pull cord achieving speeds of 650mm per second. Direct drive motor with three phase inverter giving smooth speed delivery with soft start/stop.

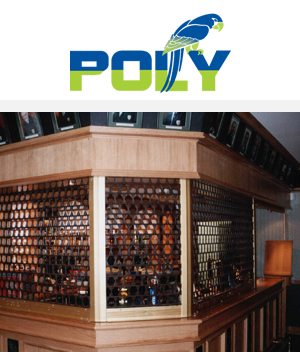

The Poly – Poly-Carbonate Grille

Poly-carbonate grille

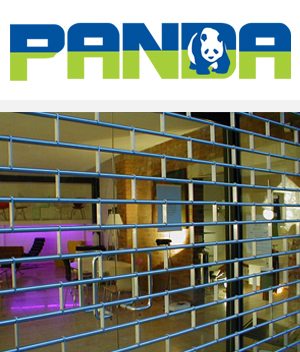

The Panda Tube & Link Grille

Tube & link grille

Cheetah – Rapid Roll Door

Reduce your carbon footprint with a high speed door of superior quality. Made at our factory here in Leigh by our own design team. The door is produced in house with spares readily available off the shelf. High speed doors are generally used in high volume traffic applications such as warehouses. The door opens in a matter of seconds and closes once it reaches it pre-determined period of time set by the customer, thus reducing heat loss and also reducing the level of noise emitted from the premises. Can be operated by remote, induction loop, radar and pull cord. Safety devices fitted as standard are 2no photo-cells and wireless resistive safety edge. Door incorporates a single wind bar as standard. For high wind pressure, double or triple wind bars are available (customer to specify requirement needs).

Clear vision panel across full width of door. Direct drive motor with three phase inverter giving smooth speed delivery with soft start/stop. Break-off tabs fitted to each end of bottom rail to prevent major damage in event of impact damage.
