Industrial Roller Shutters - Power Operated (S11)

Our Series 11 power operated industrial roller shutters are a robust product ideally suited to protect commercial and industrial premises with openings up to 12000mm wide x 6000mm high, in addition to providing ease of operation with such large openings.

Each industrial roller shutter is made to measure, CE marked, and fitted with either a direct drive or flange mount motor, some are assisted with a counter balance spring when side room requirements prevent the use of a safety brake, ensuring each product complies with European directives and gives you peace of mind.

Each design has been thoroughly tested and inspected by Exova enabling us to issue Declaration Of Performance.

All our Roller Shutters are manufactured in house at our facility in Leigh and are subject to continuous product development, ensuring the products we offer are of the highest quality whilst maintaining ease of installation.

Each roller shutter can be designed manufactured to suit your specific requirements using the latest technology from the three leading Industrial Door Motor suppliers, GFA, Link Controls and Ellard, our dedicated team can give advice and technical support, we can back up an already high quality product with first class service and support.

Options

  • Bullet Locks
  • Centre Lock
  • Ground Lock
  • Interlocks to prevent operation when security devices are engaged
  • Side seals
  • Bottom Weather Seal
  • Soffit Seal (4” Brush Strip)
  • Wicket Gates for Pedestrian Access
  • Weather Canopy
  • Perforated Curtain

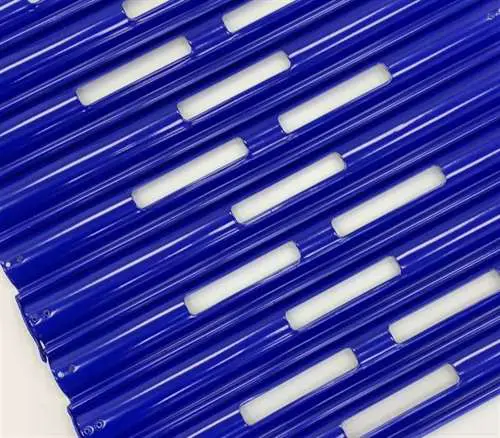

  • Punched Curtain
  • Plastisol Curtain
  • Wind Guides
  • Class 5 Wind Loading (When used with 100mm wind guide)
  • Fully automated use when Safety Edges and Photo-Cells are fitted
  • Induction Loop
  • Radar
  • Remote controls
  • Key switches
  • Powder coated to any standard RAL or BS number

Special colours available at customer request

TECHNICAL SPECIFICATION

SHUTTER TYPE – ELECTRIC / POWER OPERATION
3 PHASE (415 VOLT) or SINGLE PHASE (240V)

OPERATION
PUSH BUTTONS

MAXIMUM SIZE
6,000 mm WIDE x 5,000mm HIGH

CURTAIN
Cold Rolled 3” curved traditional lath, galvanised to BS729:1971, 22 swg (0.7mm thick) or 20swg (0.9mm thick) on shutters over 25 square metres. Alternate laths are fitted with high density glass filled nylon endlocks, which are double pop riveted to prevent lateral movement. The main curtain is attached to the shutter barrel using high tensile hexagon head set screws. A high strength galvanised (BS729:1971) inverted “T- Section” bottom rail is added to the base of the curtain, typically 1.6mm thick.

BARREL
5” Outside diameter Electric Resistance Welded tube (BS 6323), complete with uniquely fabricated helical wound torsion spring assembly, for counterbalancing of the shutter curtain. The assembly is mounted within the tube on a 25mm diameter steel shaft, complete with high density glass filled nylon bearing blocks, and high grade “sealed for life” bearings. The shutter barrel assembly is fitted with a straight cut steel gear, which is normally a 4:1 ratio. Single reduction gearing is fitted as standard.

FLAGS
Endplates are constructed from 6mm thick mild steel plate (BS 1449), a formed endplate for the geared side and a flat endplate for the non-geared side. Bespoke mild steel “cups” are bolted to the endplate using high tensile hexagon head bolts, these “cups” are where the barrel shaft is supported. Fixing angles are formed using hot rolled angle section, 75mm x 50mm x 6mm, attached to the fixing angles are the galvanised (BS 729:1971) shutter guides, the guide section is typically 2 1/2” in depth x 1” inside dimension, the guide thickness is 3mm. The flags are coated in a black zinc phosphate primer paint finish.

MOTOR

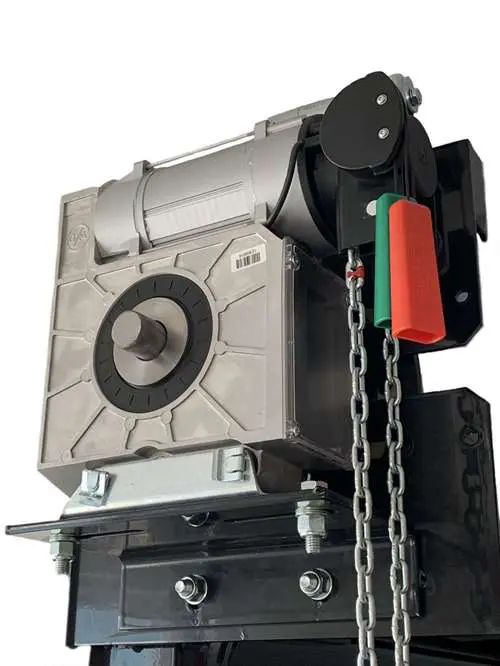

3 Phase (415 volt) or Single Phase (240 volt) – Flange mounted to endplate, complete with starter, open/close/stop facility, limits and emergency overide facility.
WEIGHT
35 KGs Per Square Metre

Space Requirements

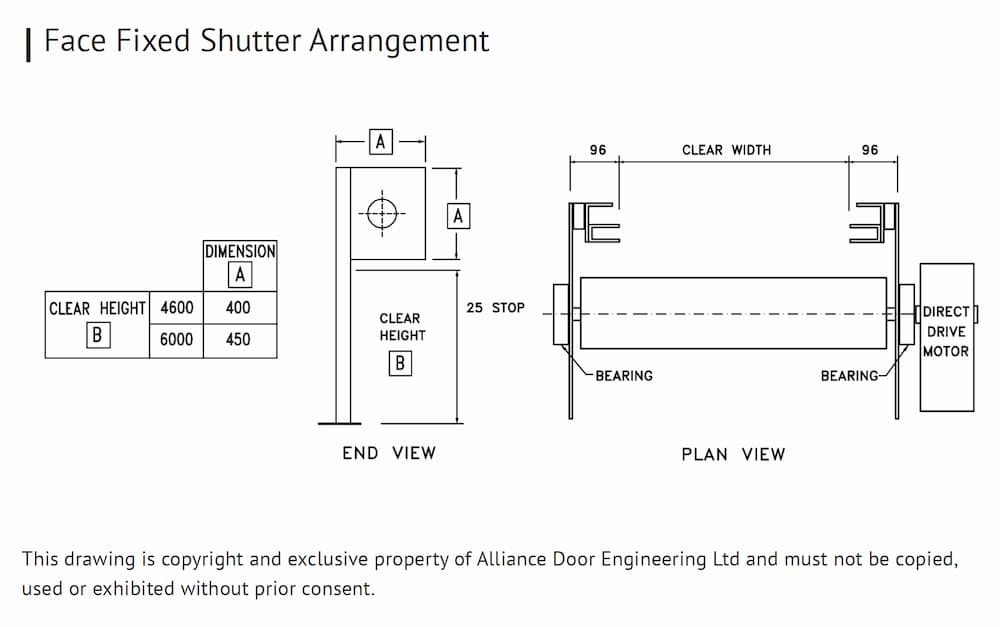

Face Fix

Maximum Width: 6000
Geared Sideroom: 150mm
Non-Geared Sideroom: 76mm Per Side

Between Fix

Maximum Width: 6000
Geared Sideroom: Lose 178mm
Non-Geared Sideroom: Lose 70mm

Maximum Height: 4550, 6000
Headroom: 425mm, 475mm

Request a Quote

    We will store the information you provide in this form in accordance with our privacy policy Here

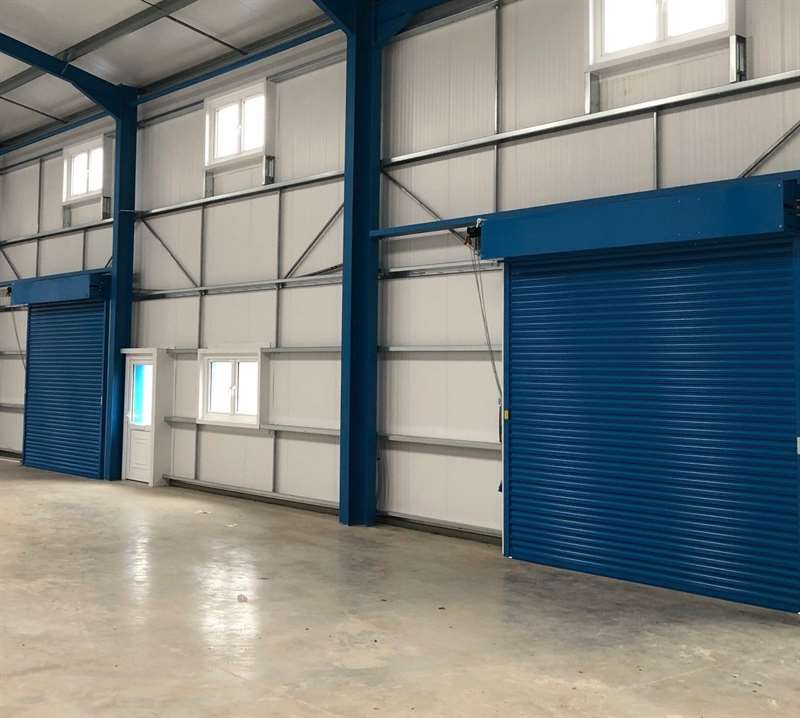

    Industrial Roller Shutters - power operated on a Commercial Unit by Alliance Doors

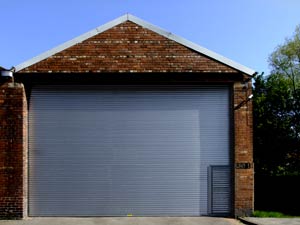

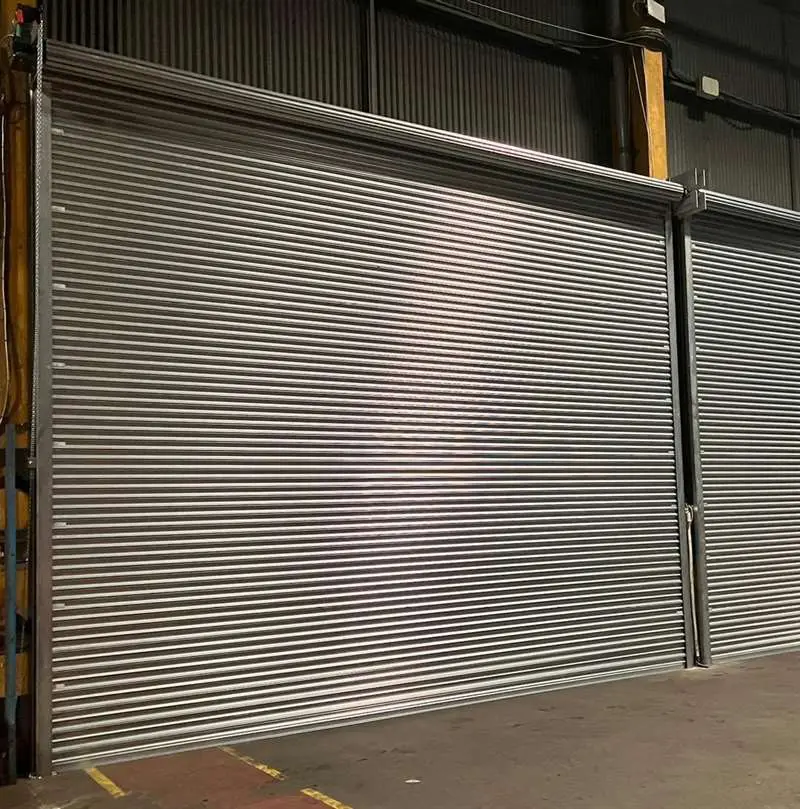

    Industrial Roller Shutters in a Warehouse by Alliance Doors
